Overview of the plan

3C Consumer Electronics

As the largest field of machine vision application in China, 3C Electronics can see the presence of machine vision in various links of the electronic manufacturing industry chain, from imaging modules and USB connectors to devices such as phone frames and PC motherboards.

This includes application scenarios such as connector processing and assembly, screen alignment and fitting, and tablet scratch detection. In the entire consumer electronics industry chain mainly consisting of smartphones, computers, Bluetooth earphones, and smartwatches, Huahan Weiye provides five visual systems and visual intelligent detection equipment to assist the electronics manufacturing industry in creating unmanned and worry free factories, achieving cost reduction and efficiency improvement.

Free acquisition

3C Consumer Electronics Parts and Package Inspection

Smartphones
Bluetooth earphones
Intelligent Watch
Computer host

Smart phone parts and assembly inspection

Appearance inspection

Measurement of SIM card slot size for mobile phones

Measurement of flatness/contour of mobile phone shielding cover

Type-C connector terminal flatness detection

Connector PIN pin alignment & height detection

Visual defect detection of shielding cover/hardware components

Appearance defect detection of connector terminals

1
Framework detection

Display foreign object detection in the tablet pad area

Display screen screw floating height & foreign object detection

Measurement of edge distance between display backplate & cover plate

3D guidance & re inspection of BG dispensing on the middle frame of mobile phones

Mobile phone frame flatness detection

3D guide for cutting the edge of the phone pouch battery skirt

Detection of appearance defects in mobile phone soft pack batteries

2
Interface detection

PCBA plugin post furnace welding quality inspection

PCBA/PCB plugin pin height measurement

TWS Bluetooth battery full size measurement

TWS Bluetooth earphone battery welding quality inspection

Quality inspection of dispensing on Type-C interface of mobile phones

Gap&Step measurement between the upper & lower covers of the power adapter

Appearance defect detection of mobile phone chargers

3

Customer Case

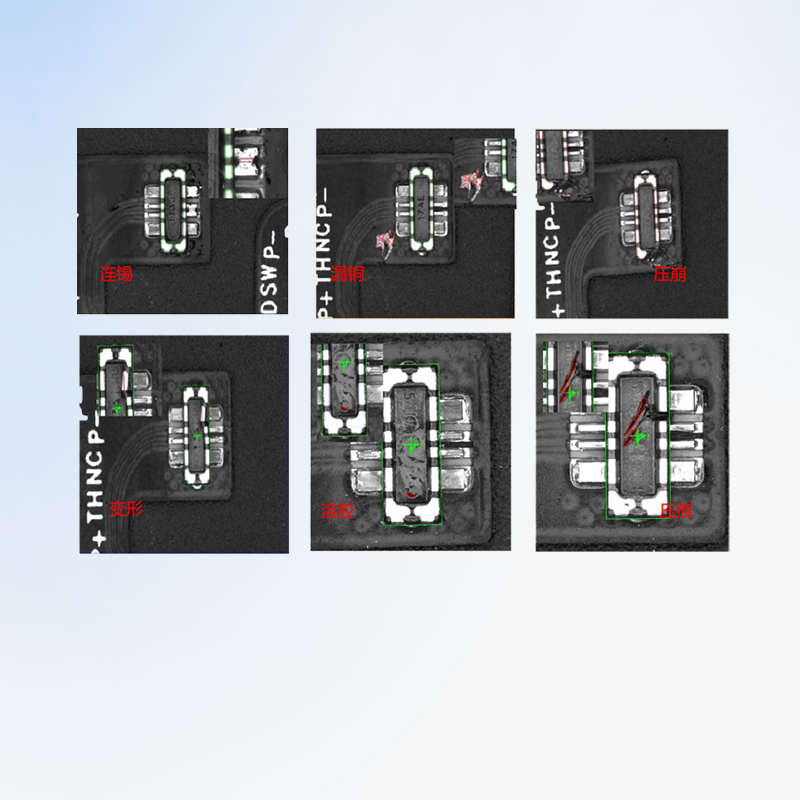

Appearance defect detection of connector terminals

Solution

iSense Al+2D+3D multimodal fusion
Testing items

Terminal area: damage, deformation of metal shell, damage to outer shell
Welding: copper leakage, tin connection, sol-gel, crushing, deformation

Glue: deformation, missing, and crushing of the adhesive wall
Detection result

A professional customized solution, including 3D imaging modeling, high extraction, defect detection algorithms, and the use of 2D+3D detection, is suitable for detecting various defects with high cost-effectiveness.

Free Access

0%

Missed call rate
≤0.5%

Misjudgment rate
~80%

Labor substitution rate

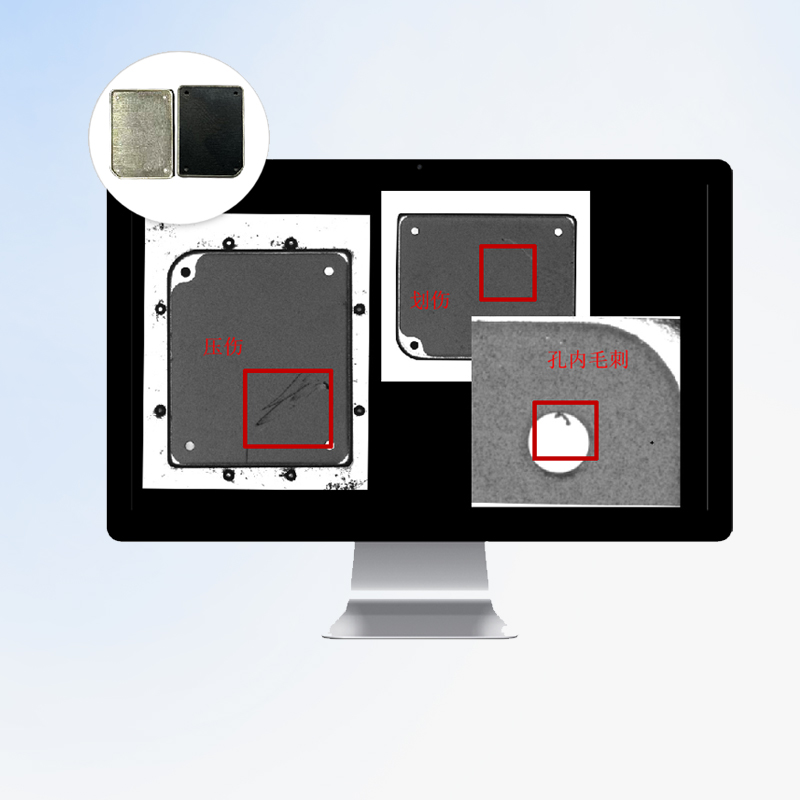

Visual defect detection of shielding cover/hardware components

Solution

iSense Al+2D detection
Testing items

Shielding cover: cracks at the R-corner position

Hole: presence or absence of holes, burrs/fibers inside the hole, etc

Membrane products: membrane pressure damage, dirt, misalignment, gaps, bubbles, etc.
Metal surface: pressure marks, scratches, dirt, etc
Detection result

(1) The fusion of traditional vision and deep learning technology has the characteristics of high accuracy and strong consistency;
(2) It can reflect actual object depth information from different perspectives, facilitating better presentation of defects. Using the pixel segmentation module in the deep learning module can identify the location, number, and area of defects.

Free Access

0%

Missed call rate
≤1%

Misjudgment rate
~75%

Labor substitution rate

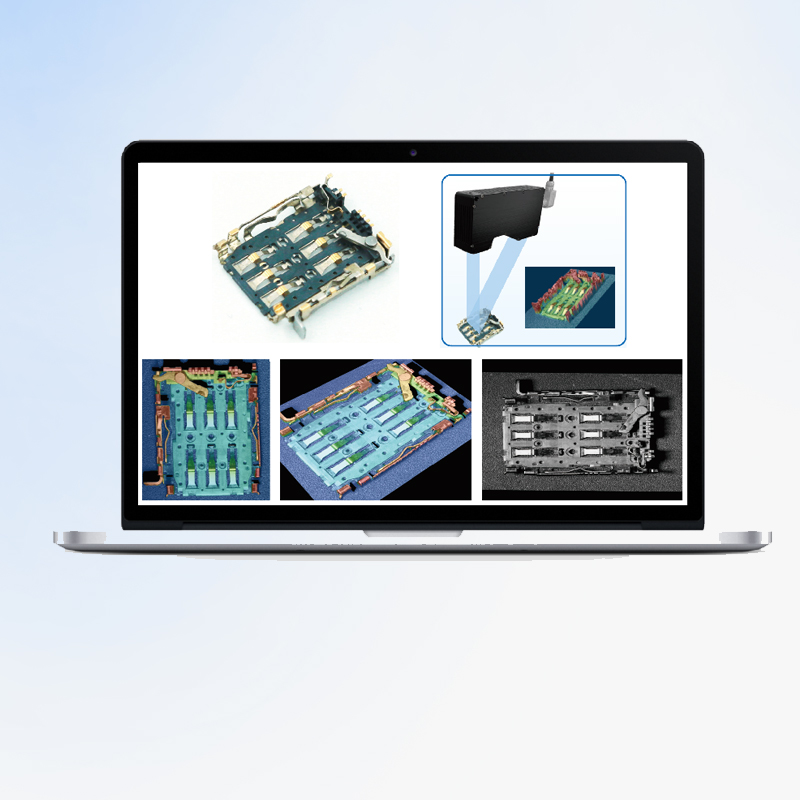

Measurement of SIM card slot size for mobile phones

Solution

HyperShape 3D detection software
Testing items

Flatness: Flatness control tolerance: 0-0.08mm
Contour degree: Contour degree control tolerance: 0~0.05mm
Detection result

(1) Flatness measurement: dynamic repeatability 0.01mm, measurement correlation 0.01mm;
(2) Contour measurement: dynamic repeatability 0.01mm, measurement correlation 0.01mm;
(3) A professional customized solution, cloud based big data control, all using linear motors for motion scanning, the whole machine CT can reach 0.5s~0.8s/pcs, with high accuracy, and can be shipped in bulk

Free Access

0%

Missed call rate
≤0.5%

Misjudgment rate
~80%

Human substitution effect
