A 2D visual inspection universal platform for stable measurement of in-plane parts

InnoVision 2D integrates rich image tools for convenient and efficient configuration

Image processing

Complete on-site image acquisition, storage, and processing, including various image operation and processing functions

1
Positioning function

Grayscale matching, contour matching, finding straight edges, and finding points for circles/ellipses

2
Geometric measurement

Complete image measurement calculations for distance, width, and angle

3

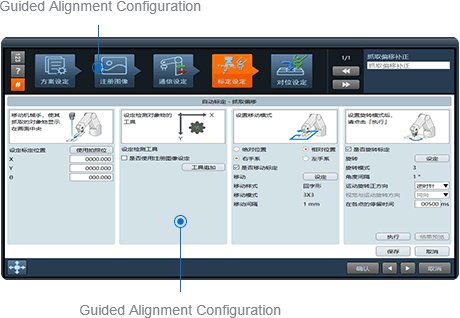

Guide alignment

13 types of guidance and alignment, including robot positioning, configuration flying racket, product assembly positioning, and fitting positioning

4
Identification detection

Defect detection, presence or absence detection, counting and other functions

5

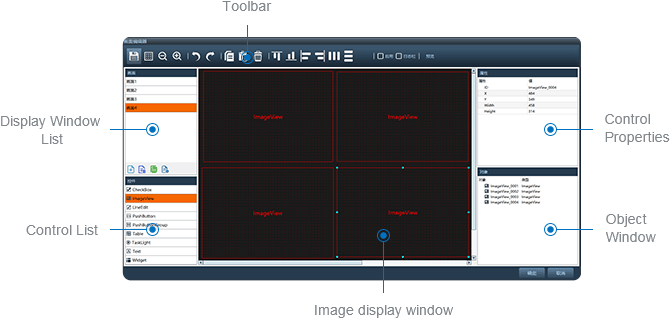

Zero code development platform, easy to operate and use

Simple business configuration steps to build an intelligent factory at low cost

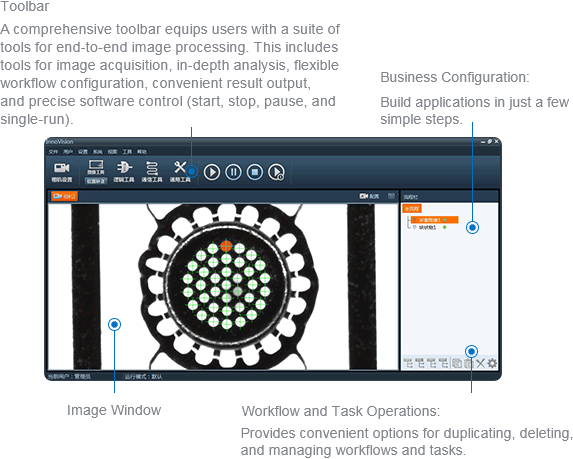

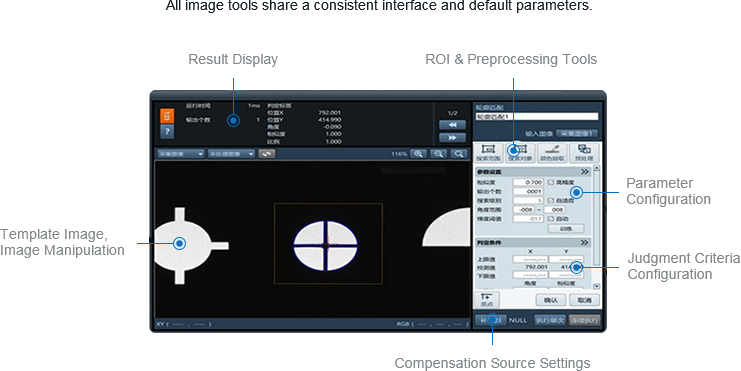

Rich imaging and business configuration tools

50+auxiliary tools, ＞300 image toolsets that can be applied to almost all application scenarios

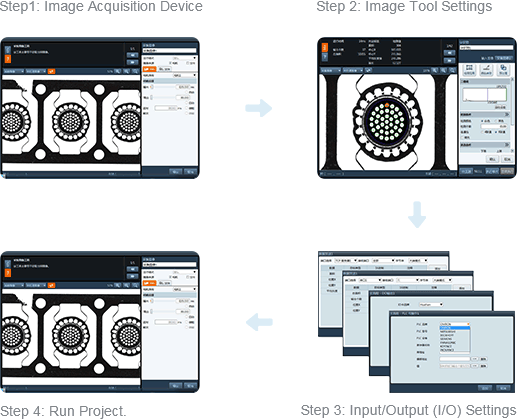

Take a few simple steps to complete on-site business configuration

Drag and drop configuration, no coding required, low professional requirements for on-site personnel
Standard for counterpoint application scenarios

Extract 13 alignment scenarios and standardize the configuration process in 5 steps to guide the completion of all alignment applications
Support AI inference tools

· Lightweight model for improved cost-effectiveness
· Industry model, solving difficult scenarios

Customer application case

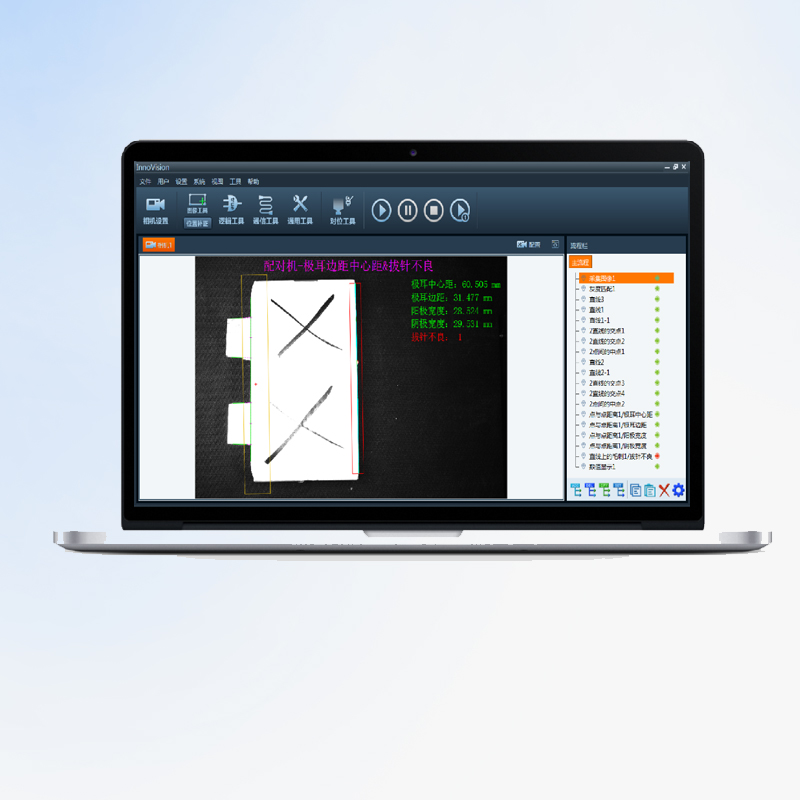

Measurement of center to edge distance of paired machine pole ears

Solution

InnoVision 2D Visual Detection Scheme
Testing items

The distance between the positive and negative electrodes of the battery cell and the edge of the coil core, as well as the distance between the negative electrode ear and the edge of the coil core
The distance between the positive electrode ear and the negative electrode ear of the battery cell
Pole ear height and length
Detection result

Professional customized solutions, real-time data chart display on display, stable recognition, simple operation, high efficiency, can quickly solve problems, high cost-effectiveness, and help enterprises reduce costs and increase efficiency.

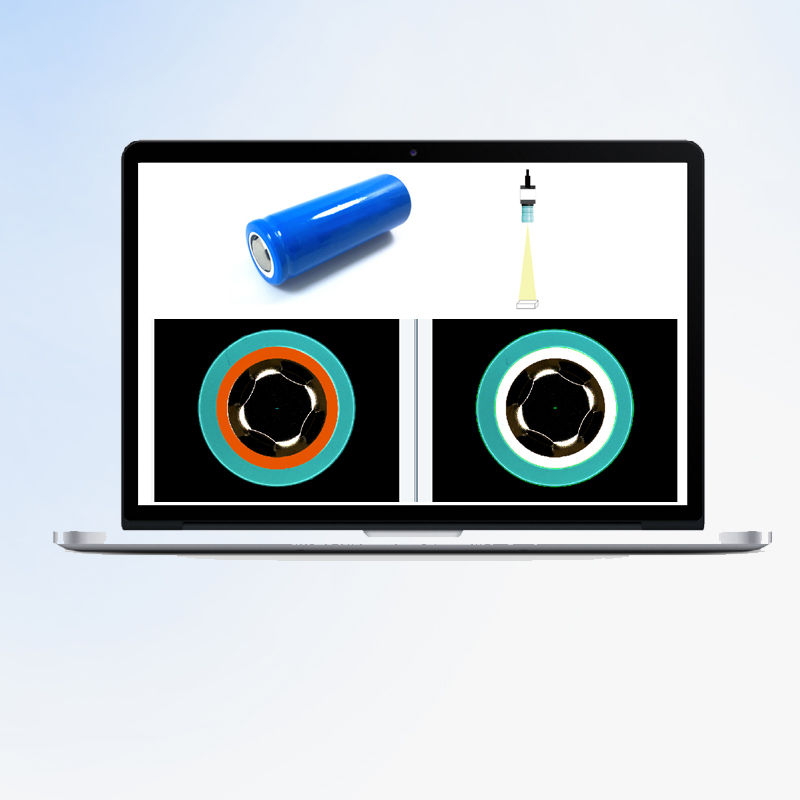

Appearance defect detection of positive electrode of cylindrical battery inkjet printer

Solution

InnoVision 2D
Testing items

Gaskets: Check for the presence of white gaskets

Defect detection: width of blue heat shrink film coating at the positive electrode end
Detection result

The visual inspection system can accurately determine whether the capsule is misaligned, determine the width of the capsule based on the size of the circle, timely detect defective products, and provide feedback to the production line to reduce the defect rate.

Usage Scenario

Power battery

Medical industry

3C Consumer Electronics

Display panel

Logistics warehousing

Pan semiconductor / photovoltaics
